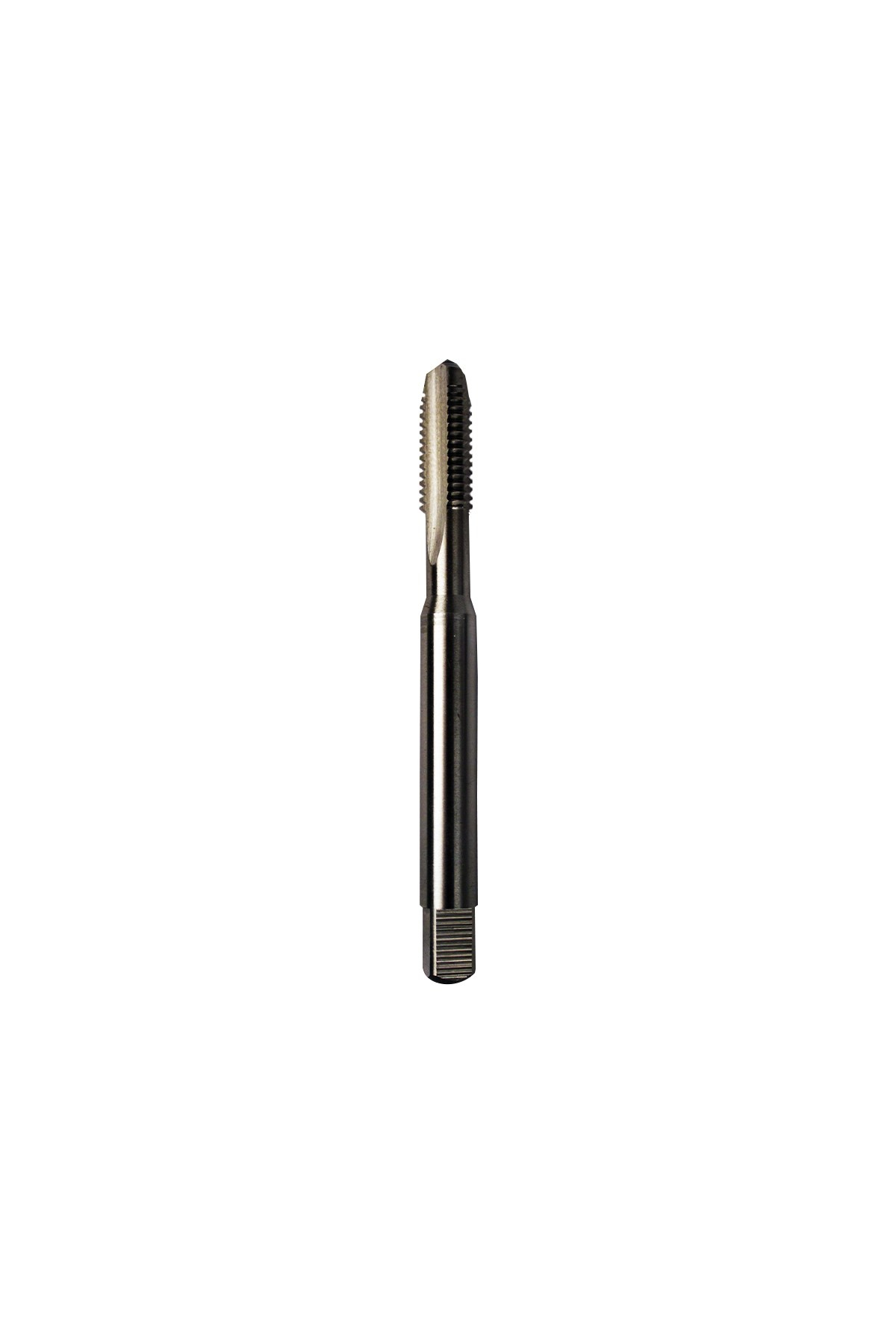

Maıer Düz Kanal Makine Kılavuzu İnce Diş 3/4 İnç Mk74Du34 (071 268)

KODU

Ø   x   P

L

L₁

Ø₁

A

Ø  (mm)

MK74DU14

UNF 1/4'' x 28

80

15

4,5

3,4

5,5

MK74DU516

UNF 5/16'' x 24

90

18

6,0

4,9

6,9

MK74DU38

UNF 3/8'' x 24

90

20

7,0

5,5

8,5

MK74DU716

UNF 7/16'' x 20

100

20

8,0

6,2

9,9

MK74DU12

UNF 1/2'' x 20

100

21

9,0

7,0

11,5

MK74DU916

UNF 9/16'' x 18

100

21

11,0

9,0

12,9

MK74DU58

UNF 5/8'' x 18

100

21

12,0

9,0

14,5

MK74DU34

UNF 3/4'' x 16

110

24

14,0

11

17,5

MK74DU78

UNF 7/8'' x 14

125

24

18,0

14,5

20,5

MK74DU1

UNF 1'' x 12

140

26

18,0

14,5

23,2
