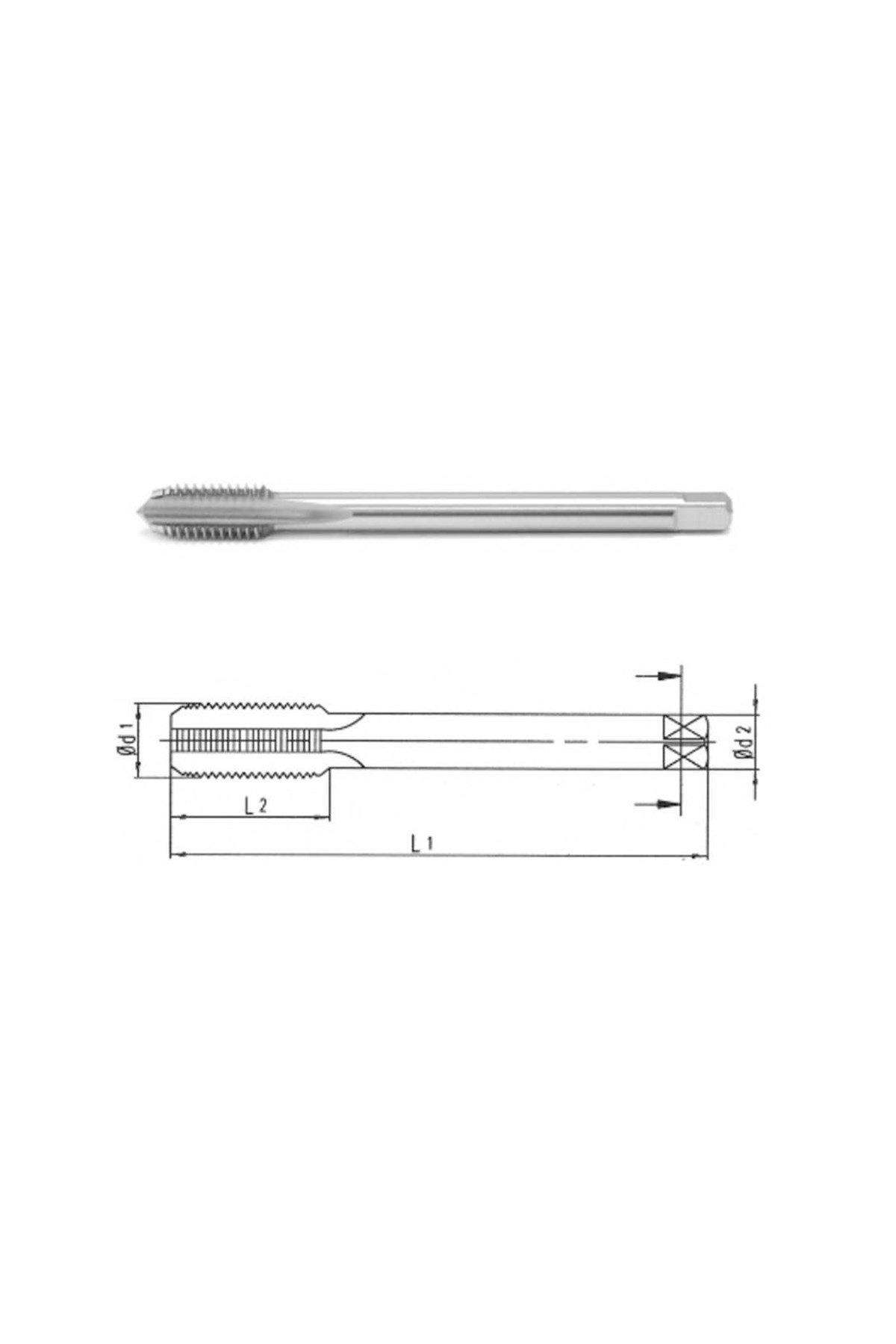

Maıer Düz Kanal Makine Kılavuzu Metrik İnce Diş 10*1Mm Mk74C1010 (071 275)

KODU

Ø   x   P

L

L₁

Ø₁

A

Ø  (mm)

MK74C0505

M5 x 0,50

70

12

3,5

3,0

4,5

MK74C06075

M6 x 0,75

80

14

4,5

3,4

5,2

MK74C0810

M8 x 1,00

90

18

6,0

5,5

7,0

MK74C1010

M10 x 1,00

90

20

7,0

5,5

9,0

MK74C10125

M10 x 1,25

90

20

7,0

5,5

8,8

MK74C1210

M12 x 1,00

100

22

9,0

7,0

11,0

MK74C12125

M12 x 1,25

100

22

9,0

7,0

10,8

MK74C1215

M12 x 1,50

100

22

9,0

7,0

10,5

MK74C1410

M14 x 1,00

100

22

11,0

9,0

13,0

MK74C14125

M14 x 1,25

100

22

11,0

9,0

12,8

MK74C1415

M14 x 1,50

100

22

11,0

9,0

12,5

MK74C1610

M16 x 1,00

100

22

12,0

9,0

15,0

MK74C1615

M16 x 1,50

100

22

12,0

9,0

14,5

MK74C1810

M18 x 1,00

110

25

14,0

11,0

17,0

MK74C1815

M18 x 1,50

110

25

14,0

11,0

16,5

MK74C2010

M20 x 1,00

125

25

16,0

12,0

19,0

MK74C2015

M20 x 1,50

125

25

16,0

12,0

18,5

MK74C2210

M22 x 1,00

125

25

18,0

14,5

21,0

MK74C2215

M22 x 1,50

125

25

18,0

14,5

20,5

MK74C2415

M24 x 1,50

140

28

18,0

14,5

22,5

MK74C2715

M27 x 1,50

140

28

20,0

16,0

25,5

MK74C3015

M30 x 1,50

150

30

22,0

18,0

28,5
